Kinect Development Workshop | Basic Tutorial

Preface:

This was the first tutorial I have ever written. It was created for a live workshop that I ran on the 14th of October, 2011, hence some things are done for simplicity's sake.
It was written on the first beta release of the Microsoft Kinect SDK, I haven't tested it out with the newer/current versions, so there may be better ways of doing things.
If you like/hate this tutorial, I'd very much appreciate any feedback. Thanks!

How to create a basic Kinect application to control arrow keys using gestures

This tutorial runs through how to make a very basic Kinect application using the Microsoft Kinect SDK. The application lets you control the left and right arrows keys using hand gestures. It could be used to navigate a powerpoint presentation.
Note: The final version in the video looks a bit dodgy, the end result is actually much better. (I highly recomment the optional extras)
Final product looks something like this:

Jump to:

Video tutorial
Set up/Resources
Sources
Setting up the development environment
Getting the RGB camera to display
Display the skeleton tracking
Controlling actions
Optional Extras
Troubleshooting
Helpful Links

Video Tutorial

Set up/Resources

1. Visual Studio 2010 C# Express - free from here: http://www.microsoft.com/visualstudio/en-us/products/2010-editions/express-iso OR if you are a student you can get Visual Studio 2010 Ultimate from DreamSpark
2. Kinect SDK: http://research.microsoft.com/en-us/um/redmond/projects/kinectsdk/download.aspx
3. Coding4Fun: http://c4fkinect.codeplex.com/
Note: This is not required for normal kinect stuff, but is used in our tutorial for simplicity.
4. For speech, go to the readme, and under system requirements, get the3 speech samples.
Note: Speech is not used in our tutorial, but is handy to have for future projects http://research.microsoft.com/en-us/um/redmond/projects/kinectsdk/docs/readme.htm

Sources

Source Files: ANU Workshop.zip
This tutorial in PDF form: Kinect Dev Tutorial
The quick-start guide from the physical workshop: KinectDevWorkshop-Quicksheet.pdf

Instructions

Setting up the Development environment

Step 1 - Creation

Create a new Windows Presentation Foundation (WPF) application. (Optional: Give it a name)

Step 2 - References

Add references to the following:


Microsoft.Research.Kinect (Found under .NET)
Coding4Fun.Kinect.Wpf (Download here: http://c4fkinect.codeplex.com/, navigate to using 'browse')
System.Windows.Forms (Found under .NET)

Step 3 - Display

Bring up the toolbox (ctrl + alt + x) and drag a canvas on to the screen.
Inside the canvas, add an image. (Optional: set width and height to 640 x 480 in the properties)
Inside the canvas, add 3 ellipses. Give them each a name e.g. headCircle, leftCircle, rightCircle. (Optional: make them look like circles by setting width/height both to 40, and set fill so it stands out)
Make sure the image and the ellipses are inside the canvas.
e.g. Your XAML code should look like this :


    <Canvas Name="canvas1">
       <Image Canvas.Left="10" Canvas.Top="10" Height="480" Name="image1" Stretch="Fill" Width="640" />
        <Ellipse Canvas.Left="320" Canvas.Top="138" Height="40" Name="headCircle" Stroke="Black" Width="40" Fill="Red" />
        <Ellipse Canvas.Left="10" Canvas.Top="10" Fill="Red" Height="40" Name="rightCircle" Stroke="Black" Width="40" />
        <Ellipse Canvas.Left="71" Canvas.Top="68" Fill="Red" Height="40" Name="leftCircle" Stroke="Black" Width="40" />

    </Canvas>

Step 4. References (again)

Inside the .cs now, you want to add:

using Microsoft.Research.Kinect.Nui;
using Coding4Fun.Kinect.Wpf;

Step 5. Loaded and Closed events

In your main window, go to properties -> Events tab -> Double click on 'loaded' and on 'closed' to add two events to your code.
Now create a Runtime environment outside of these events. In our example we call it 'nui'.

Runtime nui = new Runtime();

Within the window_loaded event, we want to initialise the runtime environment and since we want camera and skeletal tracking we give it the following options.

  	nui.Initialize(RuntimeOptions.UseColor | RuntimeOptions.UseSkeletalTracking);

Under window_closed, we need to uninitialise the environment:

nui.Uninitialize();

Getting the RGB camera to display

Step 6. Create an event for the camera

Inside the window_loaded :

nui.VideoFrameReady += new EventHandler(nui_VideoFrameReady);

Inside the event:

void nui_VideoFrameReady(object sender, ImageFrameReadyEventArgs e)
        {
//This uses the Coding4Fun library
            image1.Source = e.ImageFrame.ToBitmapSource();
        }

Step 7. Open the video stream

Inside the window_loaded :

    nui.VideoStream.Open(ImageStreamType.Video, 2, ImageResolution.Resolution640x480, ImageType.Color);

If you run the program, it should now display a video stream from your kinect.

Display the skeleton tracking

Step 8. Creating skeleton event

In the window_loaded, get it to fire off an event for the skeletons:

nui.SkeletonFrameReady += new EventHandler(nui_SkeletonFrameReady);

 	void nui_SkeletonFrameReady(object sender, SkeletonFrameReadyEventArgs e) { }

Step 9. Get the first skeleton

The skeletonframe has all the skeletons, the kinect can see up to 4, but is only tracking 2 skeletons at a time. We want to get the first of these.

SkeletonFrame allSkeletons = e.SkeletonFrame;

       //Get the first skeleton
       SkeletonData skeleton = (from s in allSkeletons.Skeletons
                                     where s.TrackingState == SkeletonTrackingState.Tracked
                                     select s).FirstOrDefault();

Step 10. Move the circles

We identify joints, using JointIDs within the skeletons array of Joints.
Here we call the method setCirclePosition which we need to define.

            if (skeleton != null)
            {

             setCirclePosition(headCircle, skeleton.Joints[JointID.Head]);
             setCirclePosition(leftCircle, skeleton.Joints[JointID.HandLeft]);
             setCirclePosition(rightCircle, skeleton.Joints[JointID.HandRight]);
            }

Step 11. setCirclePosition

The kinects x and y positions need to be scaled to fit our image and then the circles moved to the right position. Each joint has a position vector <x,y ,z >
Edit: A better way of doing the tracking has been added in the ''Optional Extras" section.


        void setCirclePosition(FrameworkElement circle, Joint joint)
        {
            var scaledJoint = joint.ScaleTo(640,480,0.5,0.5);
            Canvas.SetLeft(circle, scaledJoint.Position.X);
            Canvas.SetTop(circle, scaledJoint.Position.Y);
        }

If you run the program, it should now display a video stream from your kinect and the circles should now be tracking your hand and head.

Controlling actions

Now we want to get program to do something when we move our hands around.

Step 12. Process Gestures

We create a method to process these gestures, since we are only tracking the hand and two hands in this case, we only need them as input:

        void processGestures(Joint head, Joint left, Joint right){ }

Inside the skeletonframeready method from Step 8, we need to call this method (after we called the setCircle methods)

processGestures(skeleton.Joints[JointID.Head], skeleton.Joints[JointID.HandLeft], skeleton.Joints[JointID.HandRight]);

Step 13. Processing Gestures

The way we process the gestures in our simple application is by looking at the relative distance between each hand and the head. If the hands reach further away from the head, then we will assume that is the gesture. We then send the arrow key commands to the system.

      void processGestures(Joint head, Joint left, Joint right){
            var minDistance = 0.5; //how far away we need to reach

            //if the left hand is more than a certain distance to the left of the head
            if (head.Position.X > (left.Position.X + minDistance))
            {
                    System.Windows.Forms.SendKeys.SendWait("{Left}");
            }
            //if the right hand is more than a certain distance to the right of the head
            if (head.Position.X < (right.Position.X - minDistance))
            {
                    System.Windows.Forms.SendKeys.SendWait("{Right}");
            }
        }

Optional Extras

Controlling the kinect motor

The kinect motor isn't meant to be used often, but sometimes when you first set it up it may be facing the wrong way. You can control its elevation angle using the following function (its range goes from -27 to 27 degrees):

            nui.NuiCamera.ElevationAngle = 0;

Smoothing the skeletons:

To smooth the skeletons, this can be added to Window_Loaded.

            #region TransformSmooth
            nui.SkeletonEngine.TransformSmooth = true;
            var parameters = new TransformSmoothParameters
            {
                Smoothing = 0.75f,
                Correction = 0.0f,
                Prediction = 0.0f,
                JitterRadius = 0.0f,
                MaxDeviationRadius = 0.04f
            };
            nui.SkeletonEngine.SmoothParameters = parameters;
            #endregion

Better hand tracking

An alternate way of tracking the hands is below, it uses depth images instead and works better:

        void setCirclePosition(FrameworkElement circle, Joint joint)
        {
             float x, y;
            nui.SkeletonEngine.SkeletonToDepthImage(joint.Position, out x, out y);
            Canvas.SetLeft(circle, x * 640 - circle.ActualWidth / 2);
            Canvas.SetTop(circle, y * 480 - circle.ActualHeight / 2);
        }

Troubleshooting

I want to control power points, but it sends too many arrow keys.

Our basic implementation sends arrow keys to the system as long as your hand is a certain distance from the head. However, if you want to control powerpoints, you only want it to send the key once per gesture. This can be fixed using a Boolean check. Change processGestures to:

        bool LeftActivated = false;
        bool RightActivated = false;
        void processGestures(Joint head, Joint left, Joint right){
            var minDistance = 0.5; //how far away we need to reach

            //if the left hand is more than a certain distance to the left of the head
            if (head.Position.X > (left.Position.X + minDistance))
            {
                if (!LeftActivated)
                {
                    System.Windows.Forms.SendKeys.SendWait("{Left}");
                    LeftActivated = true;
                }
            }
            else
            {
                LeftActivated = false;
            }
            //if the right hand is more than a certain distance to the right of the head
            if (head.Position.X < (right.Position.X - minDistance))
            {
                if (!RightActivated)
                {
                    System.Windows.Forms.SendKeys.SendWait("{Right}");
                    RightActivated = true;
                }
            }
            else
            {
                RightActivated = false;
            }
}

HELP I get a XAMLParseException the first time I try to run my program.

Try restart your computer. (It actually works!)

Helpful Links

Video tutorials/quick start guide: http://channel9.msdn.com/Series/KinectSDKQuickstarts
Better version of kinect-powered powerpoint: http://kinectpowerpoint.codeplex.com/
Walkthroughs: http://research.microsoft.com/en-us/um/redmond/projects/kinectsdk/guides.aspx
------------------------------------------------------------------------------------------------------
Thanks to Microsoft for providing 2 Kinects to support the event through the MicrosoftStudentPartners Program

Title: Stargrafte
Status: Complete
Date started: Mar 2007
Date of completion: 29 Apr 2007
Pre-face:
This was a game I created as part of a game-making class in year 10. It blended my love of Stargate SG-1 and the original starcraft into a side scrolling shooter.

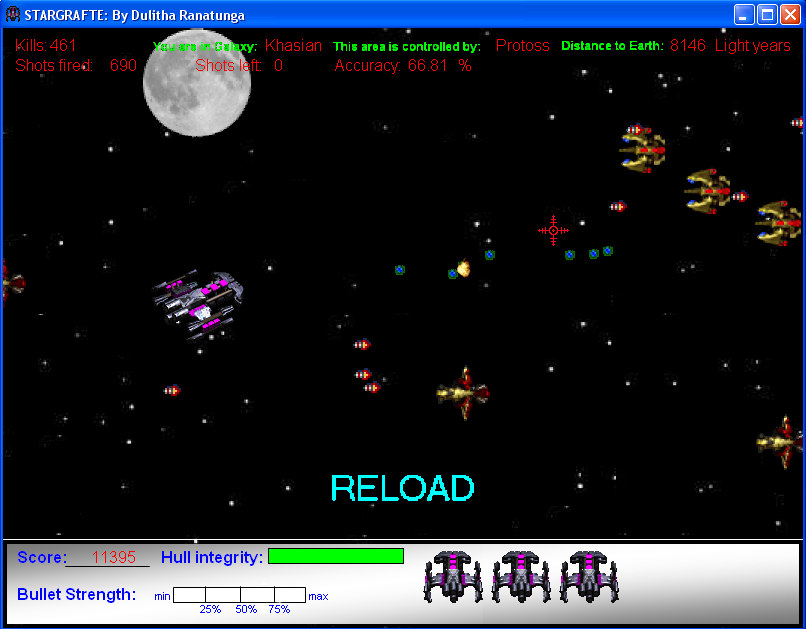

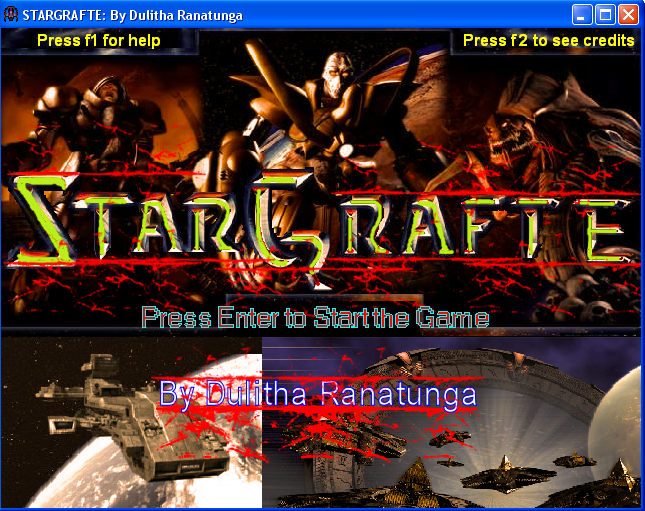

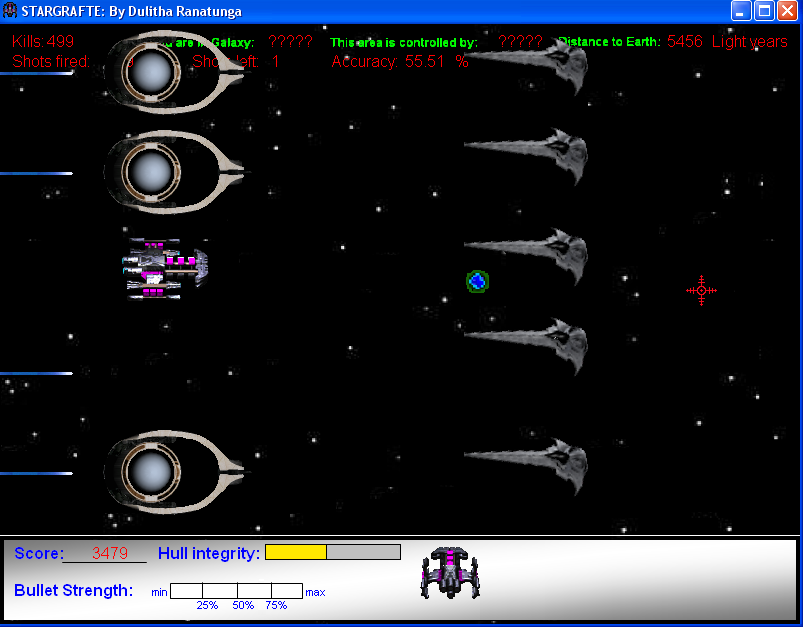

Screenshots:
